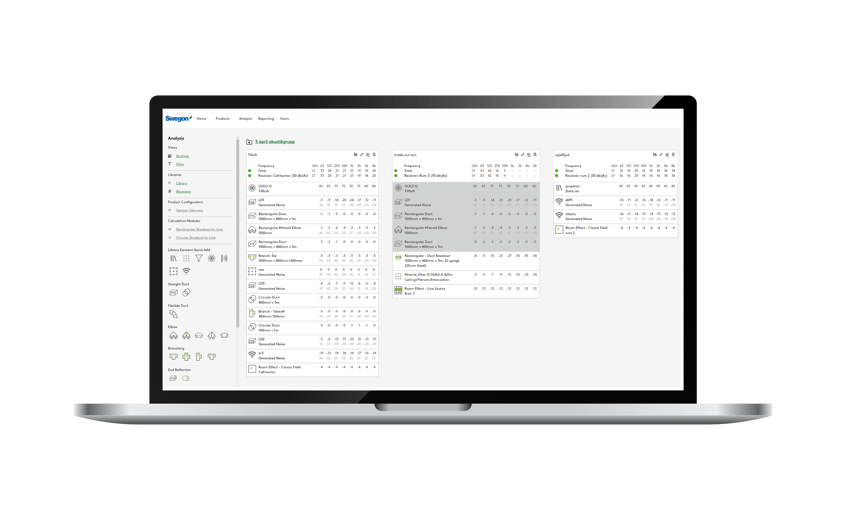

Acoustic Design

For calculating and estimating sound levels/noise, as well as configuring and selecting acoustic products

A few highlights:

Library of user-defined sound sources and sound attenuating building elements

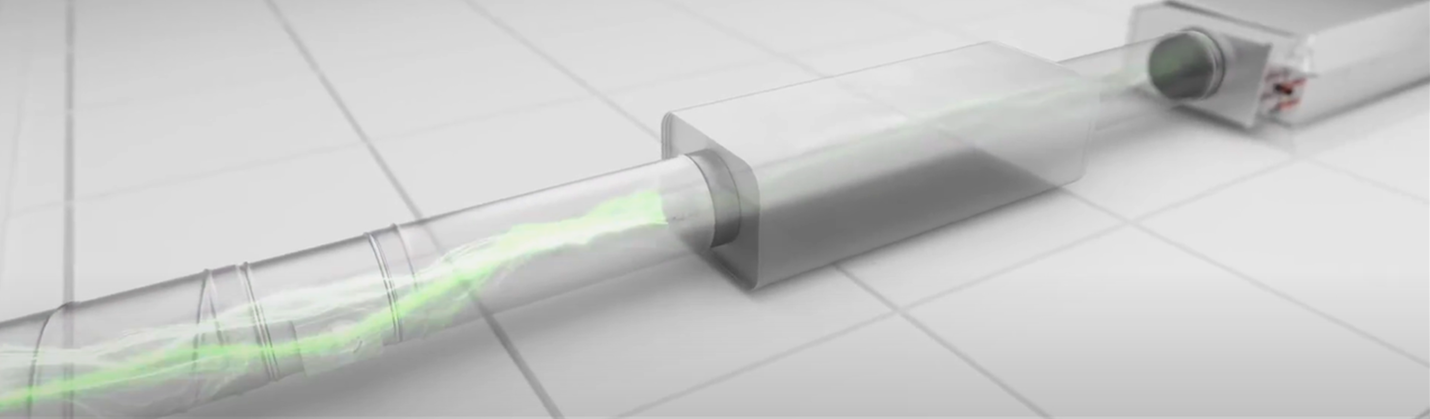

Sound attenuation in duct components through the duct system
Sound generation from turbulent air flows for duct components such as branches and bends
Noise radiation from the duct system to the surroundings, including suspended ceilings
Calculations of noise levels indoors and outdoors
Product selector for sound attenuators with selectable criteria (e.g. NC, NR, dBA, dBC)
Pressure drop over sound attenuators, including system effects

Gain access to Acoustic Design

Acoustic Design is a free piece of calculation software for acoustics.

Fill in the form below to receive your login within 24 hours.

If you are already an existing user, go straight to the home page.

You need to allow cookies for marketing if you want to view this type of content from Swegon

Acoustic Design uses the latest industrial standards, including the most recent ASHRAE RP-1408 algorithms for acoustically insulated metal ducts.

Configure and select products from Swegon’s extended range of sound attenuators to resolve complex acoustic challenges.

Use Acoustic Design’s reporting module to create calculation reports effectively and consistently.

Here we provide a number of step-by-step guides to getting started with Acoustic Design.

Here we provide a number of step-by-step video guides to getting started with Acoustic Design.

You need to allow cookies for marketing if you want to view this type of content from Swegon

A general introduction on how to get started with Acoustic Design application

Click here if you prefer to used Acoustic Design’s predecessor.
(ProSilencer will eventually be entirely replaced by Acoustic Design).
